Material: Acrylic
Dimensions: 149637059mm
Net Weight: 598g
Protocol: ISO 18000-6C
Frequency: 860~960 MHz
Application Scenarios: Clothing management, smart inventory, etc.
Product Introduction
Products Description

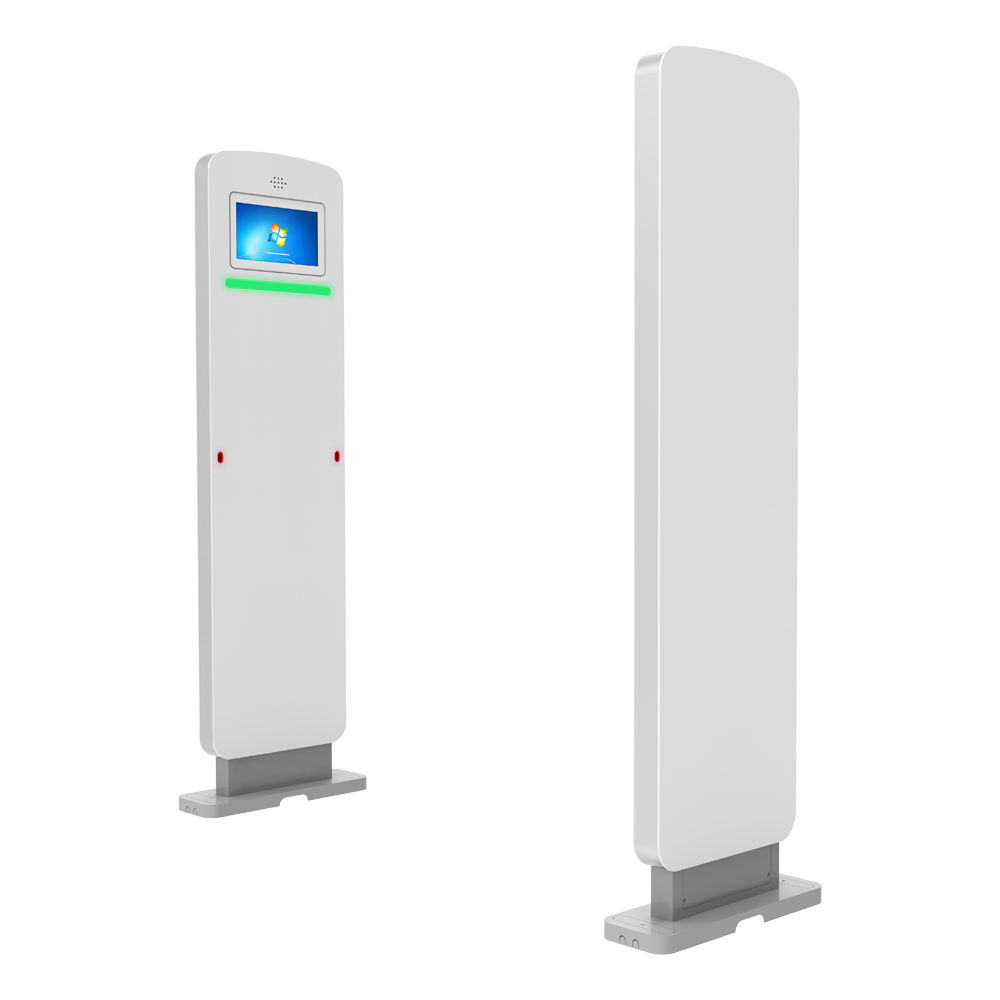

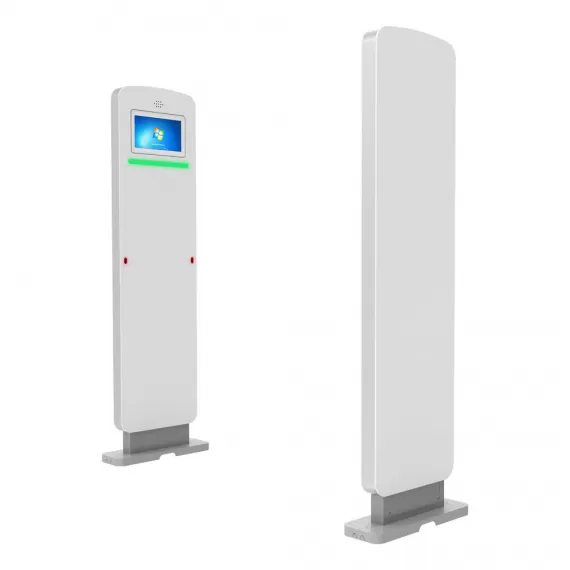

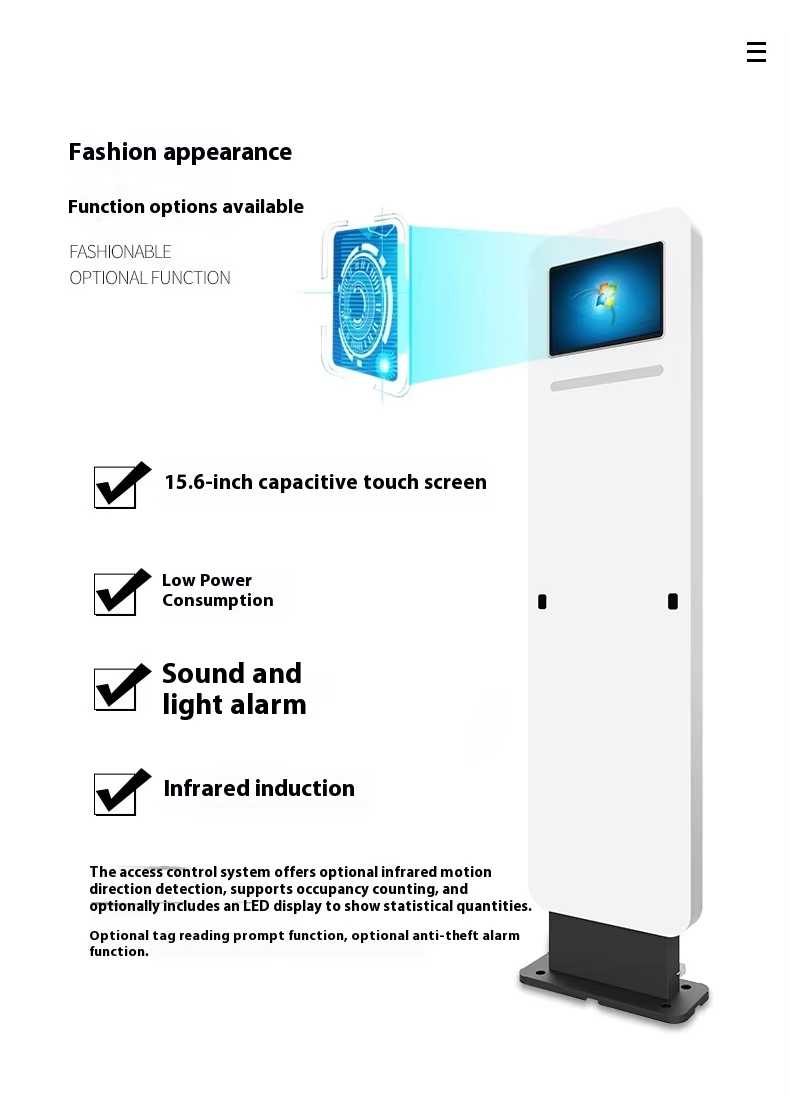

| Product model | smart security access control with screen |
| Screen | 10.1inch capacitive touch screen |
| Communication interface | RJ45;RS232 (wifi/4G optional) |
| Output power | 0-33dbm (adjustable) |
| Reading distance | 300-500cm (adjustable) |

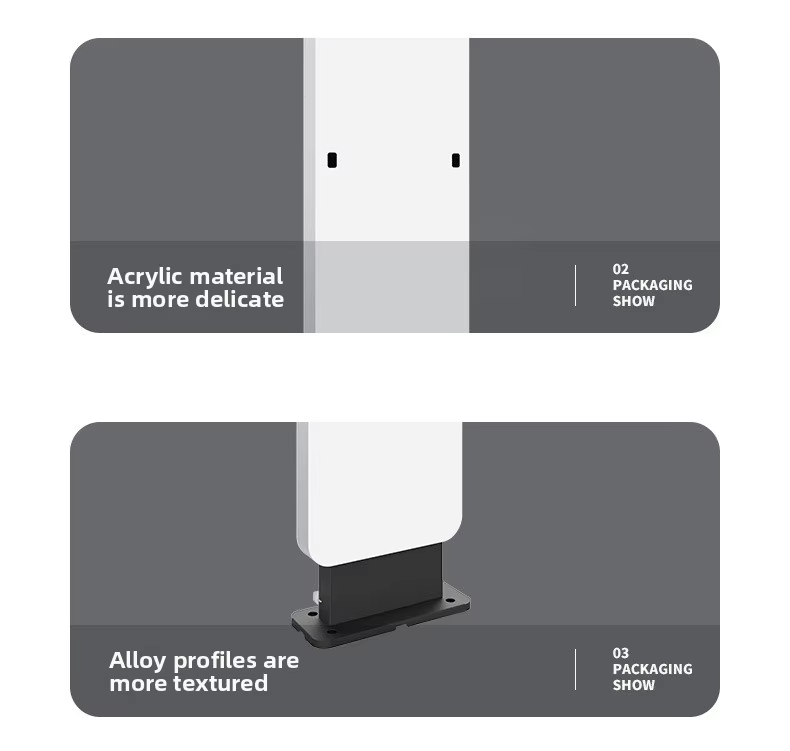

| Equipment materials | Alloy profiles; acrylic surfaces |
| Appearance | body-silver, panel-off-white |
| Workingtemperature | -10c~+50° |
| installation method | Equipped with 1.2m stainless steel floor groove |
| Machine power | 20w |

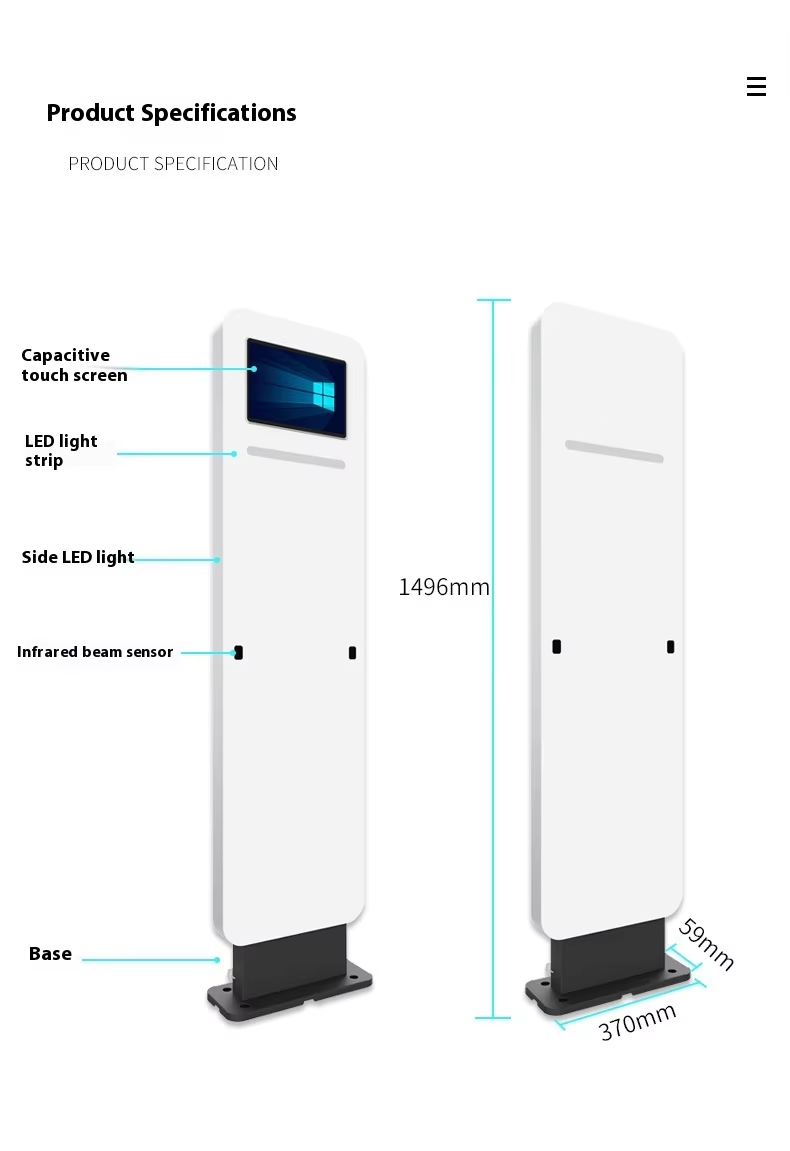

| Size | 1496*370*59mm (137mm base) |
| Working voltage | AV220v±10% |
| Energy | Sound and light alarm, can be connected to the camera function |
| Working frequency | GB1: 920MHz~925MHz; GB2: 840MHz~845MHz; FCC: 902MHz~928MHz; ETSl: 865MHz~868MHz(optional) |
| Empty port protocol | ISO18000-6C / EPC C1G2, ISO18000-6B GB / T29768-2013(expandable support); ISO015693 |
